Ping

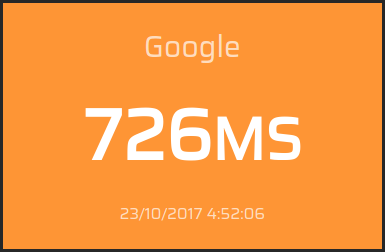

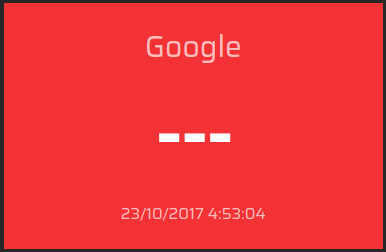

The ping widget is used to display the outcome of a request to an API endpoint or website and report whether the response was a 200 and how long it took to get that response. If the response was 200, then the widget will remain orange. However, if the response is anything other than 200 the widget will be red.

Usage

  import PingWidget from '../widgets/ping/widget';

  <PingWidget
    name="GooglePing"
    title="Google"
  />

Props

Prop	Description	Required
name	Name of widget. Used to update the widget when a job completes	Yes
title	Title of widget. Usually displayed above the metric value	Yes
size	Size of the widget: small (default) or medium can be used	Optional

Data Stucture

When building a job for a ping widget, a status value and and time value should be sent e.g.

  // Successful
  data: {
    status: 200, // HTTP Status Code
    time: 726, // Request Time (ms)
  }

  // Failed
  data: {
    status: 500,
    time: 0,
  }

Example
