Build Status

The build status widget is designed to show the outcome of a build process. Usually as part of a continuous integration process. The widget has two design states success and fail. Success is green and fail is red. Any other state is blue e.g. pending or running.

Usage

  import BuildStatusWidget from '../widgets/build-status/widget';

  <BuildStatusWidget
    name="DemoMaster"
    title="Build - Master"
    size="medium"
  />

Props

Prop	Description	Required
name	Name of widget. Used to update the widget when a job completes	Yes
title	Title of widget. Usually displayed above the outcome value	Yes
size	Size of the widget: small (default) or medium can be used	Optional

Data Stucture

When building a job for the build-status widget, a single value should be used e.g.

// Successfull build
data: { outcome: 'success' };

// Failed build
data: { outcome: 'fail' };

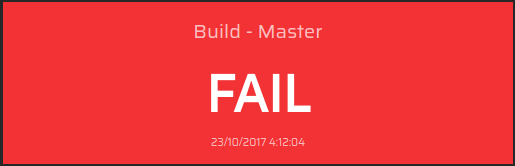

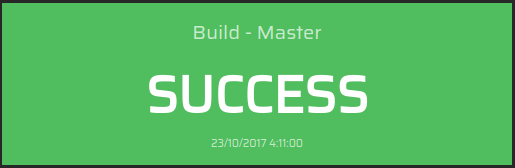

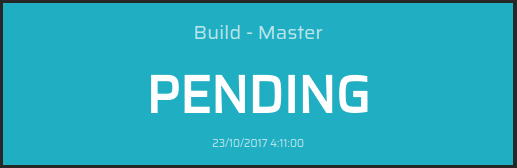

Example
